Static IP Setting

How to configure the Static IP Address

  1. Open the Firefox or Chrome web browser.
  2. In the address bar, enter localhost or the localhost address 127.0.0.1.

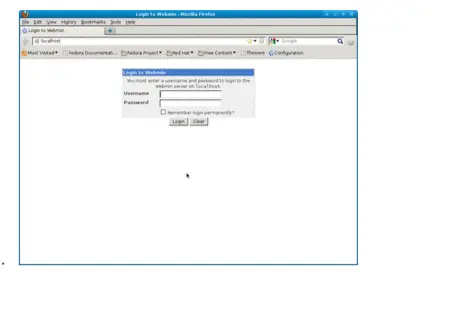

  3. Enter your Webmin Login name and password in the Webmin server login dialog box.
![Image](/s/image/static-ip-setting/static-ip-setting-1.webp)
  1. Click Networking in the left pane of Webmin. Click Network Configuration to list the network interfaces.
  2. Click the name of the network interface you want to edit. For a wired network, click the eth0 interface.
  3. Once the interface is recognised, configure it as follows.
  4. To bring the interface up at boot time, set the Activate at boot? field to Yes.
![Image](/s/image/static-ip-setting/static-ip-setting-2.webp)

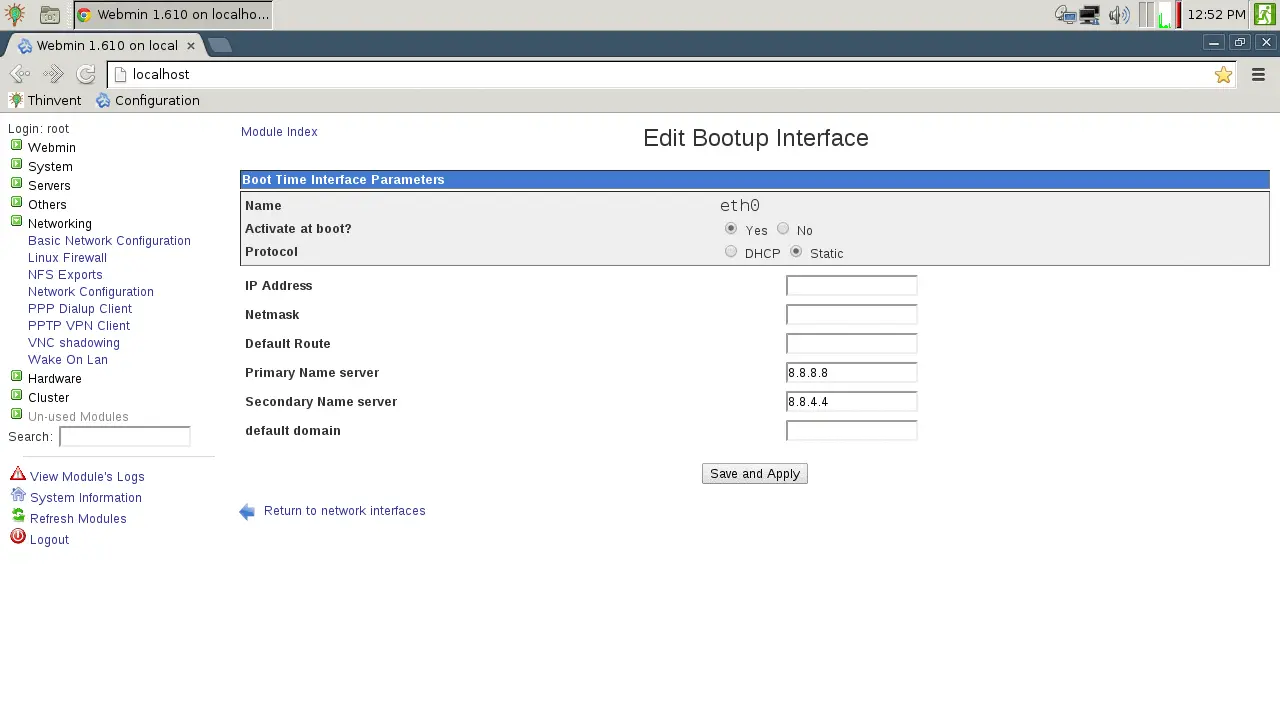

  1. In the protocol field, select Static.
  2. In the IP Address field, enter an address.
  3. In the Netmask field, enter the netmask of the network the interface is on, such as 255.255.255.0.
  4. In the Primary Name Server field, enter the address of the primary name server, such as 4.2.2.2.
  5. In the Secondary Name Server field, enter the address of the secondary name server, such as 8.8.8.8.
  6. In the default domain = thinvent field, add the default domain.
  7. Press Save and Apply. Wait a few seconds for the network interface to restart with the new IP address.
